MODEL : TE 32

제품선택

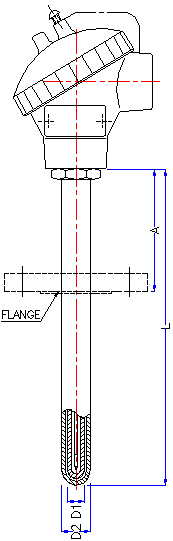

1.CONSTRUCTION   WEATHER PROOF EXPLOSION PROOF(ExdⅡCT6)

2.THRMINAL BLOCK MATERIAL : CERAMIC

3.HEAD : MATERIAL :ALUMINUM ALLOY
              SURFACE COLOR : METALIC SILVER
4.ELEMENT : ANSI K ANSI R ANSI T ANSI E ANSI S ANSI B OTHER  OTHER :    BARE WIRE :  0.3 0.4 0.5 0.65 1.0 1.6 2.3 3.2 없음

5.PROTECTING TUBE INNER DIAMETER (D1) : 8 10 15 17 20 21.7 27.3 OTHER  OTHER :   Φ

6.PROTECTING TUBE OUTER DIAMETER (D2) : 8 10 15 17 20 21.7 27.3 OTHER  OTHER :

7.PROTECTING TUBE INNER MATELRIAL : SUS 304 SUS 316 SUS 310 INCONEL600 HB SSA-S OTHER    OTHER :

8.PROTECTING TUBE OUTER MATELRIAL: 50 100 150 200 OTHER    OTHER:

9.FLANGE SIZE AND MATERIAL : SIZE :  MAT'L : 11.TERMINAL BLOCK : : SINGLE DOUBLE TRIPLE

12.LENGTH : L :   mm     A :   mm

13.CABLE GLAND:
