MODEL : MES ( SHEATHED TYPE ) SES ( PIPE TYPE )

제품선택

1.ELEMENT   ANSI K ANSI J ANSI T ANSI E PT100Ω JPT100Ω 없음

2.PROTECTING TUBE OUTER DIAMETER (D)

    3.2 4.8 6.4 8.0 OTHER    OTHER :

3.PROTECTING TUBE MATELRIAL :    SUS 304 SUS 316 SUS310 INCONEL600 OTHER  OTHER :
4.THREAD (COMPRESSION FITTING TYPE) : PT3/8 NPT3/8 PT1/2 NPT1/2 OTHER 없음  OTHER :

5.HOT JUNCTION (FOR T/C) : 접지형 비 접지형 노출형

6.TERMINAL BLOCK : SINGLE DOUBLE

7.LEAD WIRE : OTHER 비닐 비닐+SHEILD GLASS GLASS+SHEILD    OTHER :

8.LENGTH : L :   mm
               ℓ :   mm




성 명

E-mail

    상호

첨부파일

        기본 5Mbyte

전화번호

        - -

문의항목

        ## 항목을 선택하시기 바랍니다. ## ----------------------- 견적서 요청 카다록 요청 기술 및 서비스에 관한 문의 기타 문의 사항

문의사항

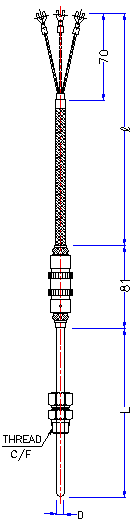

THIS  DRAWING AND SPECIFICATIONS HEREIN ARE THE PROPERTY  OF THE HANSAENG INS. CO,LTD. AND MUST NOT BELOANED OR OTHERWISE TRANSFERRED TO ANY THIRD
